August 23, 2022
One of my blog friends asked about the weight of the rig. I thought instead of replying in a comment, I would do a post.

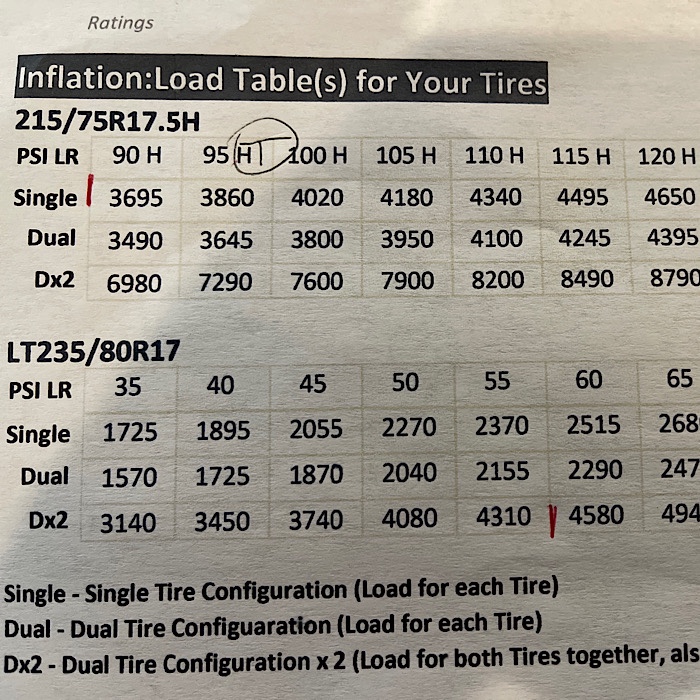

Dave and Tina Rayburn, Weighing Specialist proved a report after weighing the rig.
On the tow vehicle, Cliff the Big Red Truck, here is the axel measurement without the RV.
- Passenger: Front 2,700 Rear 1,950
- Driver: Front 2,750 Rear 2,000
- Axel Wt: Front 5,450 Rear 3,950
- Axel Rate: Front 6,000 Rear 9,750
Here is Cliff’s measurements with the RV attached.
- Passenger: Front 2,800 Rear 4,400
- Driver: Front 2,900 Rear 4,300
- Axel Wt: Front 5,700 Rear 8,700
- Axel Rate: Front 6,000 Rear 9,750
Here is the weight on the axels on the RV.
- Passenger: Front 2,940 Mid 2,900 Rear 2,450
- Driver: Front 2,700 Mid 3,000 Rear 3,000
- Axel Wt: Front 5,650 Mid 5,900 Rear 5,450
- Axel Rate: Front 7,000 Mid 7,000 Rear 7,000
Pin weight is 5,000 and it can take up to 7,500.
